Interfacing

LCD Display

11 1693
Edited by masterholdy at Fri Aug 28, 2015 08:55

HI Guys,

i just got my HD44780 LCD Display(http://www.ebay.de/itm/371413218216?_trksid=p2060353.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT )


And this is how my LCD looks like atm

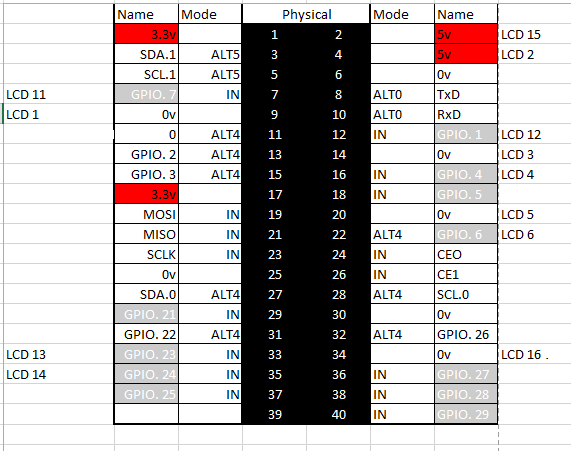

and this is how i connected everything

LCDn={1 = GND,2 = VCC,3 = VO,4=RS ,5= RW,6= E,
            11 = D4, 12 = D5, 13 = D6, 14 = D7, 15 = A, 16 = K}

I tried to use the LCD_Test.py from (http://www.rdklein.eu/rdpiforum/download/file.php?id=9)

This is what i changed in the Adafruit_CharLCD.py
def __init__(self, pin_rs=4, pin_e=6, pins_db=[7, 1, 23, 24], GPIO=NONE):

What did i fuck up? :c  I get no errors but the Display dont change atall
Thanks in advance
could u pls reply guys :C

See if it works following these instructions:
https://learn.adafruit.com/chara ... bone-black/overview

if i test Adafruit_CharLCD.py i get TypeError: init takes at most 5 arguments (9given)
but i didnt change stuff? :c

did all acoroding to this https://github.com/adafruit/Adafruit_Python_CharLCD
wont work for me

if i try other lcd test scripts i always get: BAPI: revision(2)

do i maybe use wrong pi gpio library? i did all acording to this tut https://github.com/LeMaker/RPi.GPIO_BP

if i run the test script (https://github.com/LeMaker/RPi.G ... st/info_RPi.GPIO.py)
i get
BPi Version 2
RPi.GPIO VERSION 0.5.8

the rpi.gpio is the problem 99% tried to controll an lcd via pi via RPi.GPIO nothing happend i started using
os.system(""gpio write 24 1") and it works
is there a way to controll the lcd via wiring pi? so i can test it?

tried lcdproc and i got

root@lemaker:~# sudo LCDd
check_board_rev: This board is not recognized as a Raspberry Pi!
Driver [hd44780] init failed, return code -1
Could not load driver hd44780
There is no output driver
Critical error while initializing, abort.

i even followed this http://lcdproc.sourceforge.net/d ... berrypi.pin-mapping

i guess i have to switch to raspberry pi

even bourght a new lcd still same problems

solved it myself
