What do you want to run on your Banana?

24 13798
igorpec
Edited by igorpec at Thu Dec 25, 2014 15:27

You can do all of this with clean minimal stable base of Debian Wheezy. After spending more than a year developing Debian for Cubieboard I decided to port this the most popular Cubie linux image to Banana PI.

The image is based on different kernel source than Bananian and other deployment located on this forum. Image is suitable for any SD card larger than 1G and can be moved to SATA. The first boot takes longer time (around 1m50s) than usual (20s). It needs to regenerate SSH keys and resizes partition to fit your SD card. It will reboot one time automatically on first boot to take effect for changes.



Image download, history and support.

  • Debian Wheezy, Jessie or Ubuntu Trusty based
  • Kernel 3.4.104 and 3.18.1 with large hardware support, headers and some firmware included
  • Ethernet adapter with DHCP and SSH server ready on default port (22) with regenerated keys @ first boot
  • Enabled analog audio device
  • IR functional and preconfigured – tested with LG remote
  • Bluetooth ready (working with external key)
  • I2C ready and tested with small 16×2 LCD. Basic i2c tools included.
  • SPI ready and tested with ILI9341 based 2.4″ TFT LCD display.
  • Clustering / stacking
  • USB redirector – for sharing USB over TCP/IP (disabled by default /etc/init.d/rc.usbsrvd)
  • root file-system auto resize
  • Graphics desktop environment upgrade ready
  • SATA install script included (/root)
  • Disabled LED blinking, logo (/etc/init.d/disable_led_banana.sh, kernel.config, kernel parameters in uEnv.txt)
  • Total memory is 1000Mb (disabled all memory reservations for GPU)

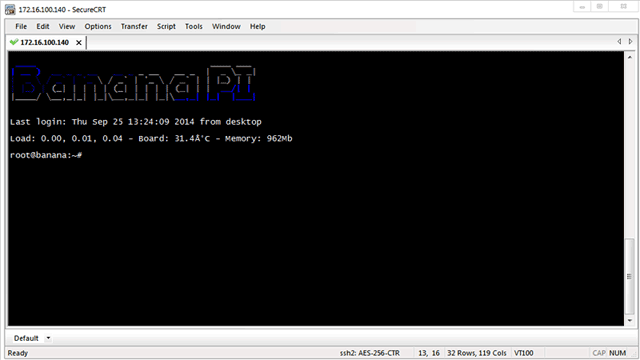

  • Login script shows Banana PI MOTD with current board temp, hard drive temp, ambient temp from Temper if exits & actual free memory
  • root password=1234 and expires at first login
  • sunxi-tools included: fex2bin, bin2fex
  • Performance tweaks:
    • /tmp & /log = RAM, ramlog app saves logs to disk daily and on shut-down
    • IO scheduler NOOP for SD. (change in /etc/sysfs.conf)
    • journal data writeback enabled. (/etc/fstab)
    • commit=600 to flush data to the disk every 10 minutes (/etc/fstab)
    • optimized CPU frequency scaling 480-1010Mhz with interactive governor (/etc/init.d/cpufrequtils)
    • eth0 interrupts are using dedicated core
    • Allwinner Security System cryptographic accelerator





DIY:
Multiple Polls: ( Maximum 6 choices ), Total 27 Users voted View Voters
29.03% (18)
14.52% (9)
19.35% (12)
8.06% (5)
17.74% (11)
11.29% (7)
Your User group have no permission to vote
KPB
good!

Sebster
Great job!
What kind of a LCD Display are you using?
I'm looking forward to buy one, but I'm not sure wich one would work..

igorpec
Sebster replied at Sun Nov 9, 2014 13:06
Great job!
What kind of a LCD Display are you using?
I'm looking forward to buy one, but I'm not sur ...

Thanks!

I am using this one (SPI based):

http://www.ebay.com/itm/2-4-240x ... 760404213&rt=nc

Small one is this:
http://www.ebay.com/itm/IIC-I2C- ... ce&talgo=origal

Sebster
Edited by Sebster at Mon Nov 10, 2014 11:24

Thanks igorpec !

Could you please tell what cables you are using to connect the small Display to the Bpi?
Do I need those cables here? Here

tkaiser
Sebster replied at Mon Nov 10, 2014 11:24
Thanks igorpec !

Could you please tell what cables you are using to connect the small Display to th ...

@Sebster, it would be great if you start a new thread in an approriate sub forum regarding your support questions.

This here is a poll regarding Igor's great image. I still don't get it why people vote for silly stuff in other polls and just 7 people participated here. But I hope the LeMaker guys send Igor at least one Banana Pro to adapt his image to in any case (since they're benefiting most from a strong community and especially the more experienced people that are able to advance software stuff for the boards)

igorpec
Edited by igorpec at Tue Nov 11, 2014 08:24
Sebster replied at Mon Nov 10, 2014 11:24
Thanks igorpec !

Could you please tell what cables you are using to connect the small Display to th ...


Yes, those cables are ok. You can find more info about connecting displays:
http://www.igorpecovnik.com/2014/09/07/banana-pi-debian-sd-image/

igorpec
Edited by igorpec at Thu Dec 25, 2014 15:29



I added mainline Jessie and Ubuntu Trusty compilation. If someone needs such scenario ...

Happy holidays!

tkaiser
Edited by tkaiser at Mon Dec 29, 2014 06:46
igorpec replied at Thu Dec 25, 2014 15:29
I added mainline Jessie and Ubuntu Trusty compilation


Just trying to answer in the community's name: Thanks a lot for your efforts and good work providing these superiour Debian images!

igorpec
Edited by igorpec at Fri Jan 2, 2015 15:59
tkaiser replied at Mon Dec 29, 2014 06:46
Just trying to answer in the community's name: Thanks a lot for your efforts and good work providi ...


Thank you for your efforts too!



First mainline image with video console. Preview release:
http://mirror.igorpecovnik.com/B ... eezy_3.19.0-rc2.zip


Thanks for feedback and support.
